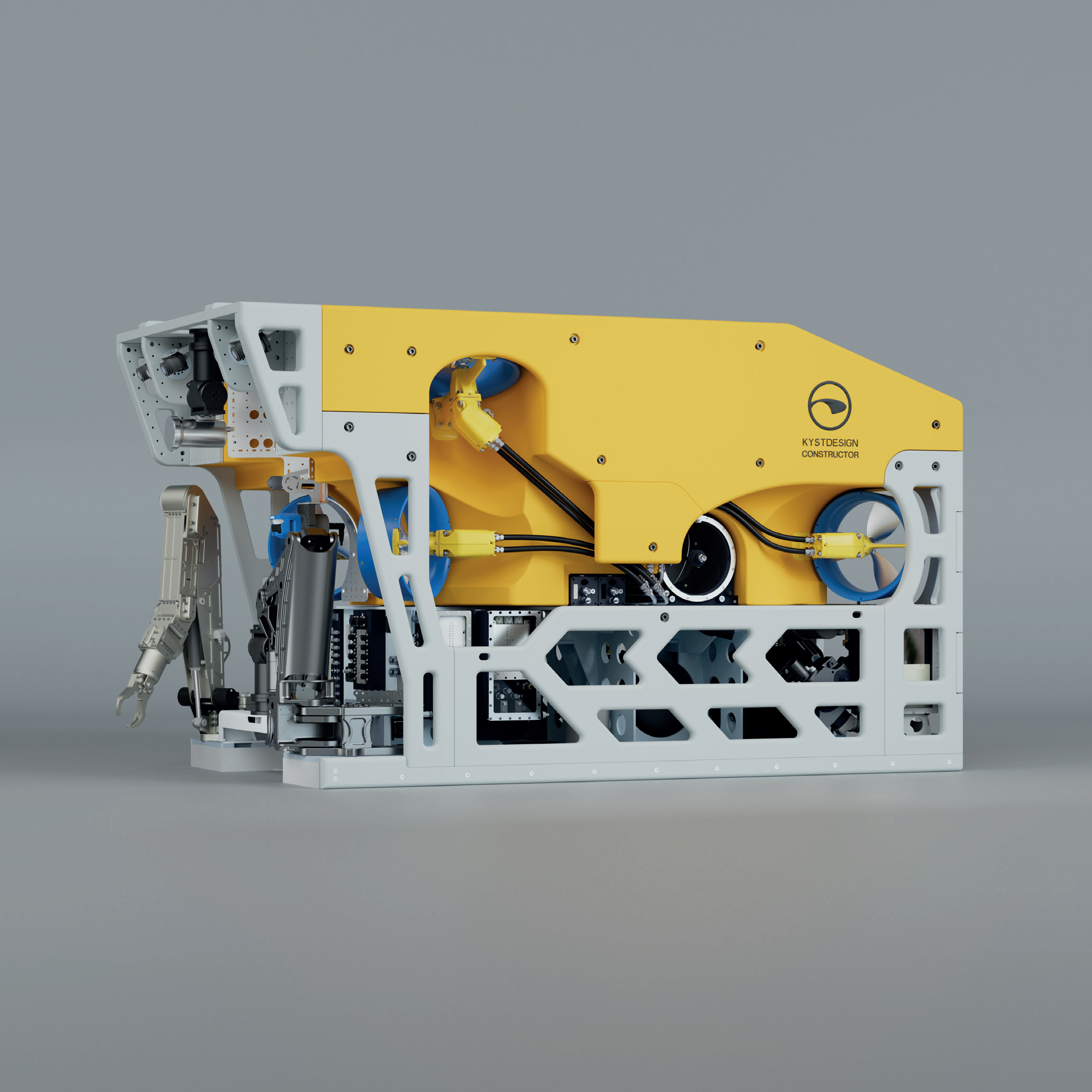

The CONSTRUCTOR ROV is a powerful construction - grade remotely operated vehicle. It is uniquely designed to carry and operate large tools and modules. Its design incorporates years of practical operation experience of Kystdesign's designers.
The topside control system is dedicated to creating an ergonomic, intuitive, and efficient working environment.
It can be easily configured with single or dual operation stations according to requirements. During operation, task priorities can be flexibly switched and shared among different operation stations.
lFeatures
1. Abundant Interfaces with Comprehensive Safety Monitoring: The device is equipped with up to 41 electrical connectors for connecting external equipment such as tooling, survey sensors, and cameras. Meanwhile, all power supplies are equipped with ground - fault monitoring functions. In addition, it has 24 hydraulic functions, all of which are proportionally controlled.
2. Powerful Intelligent Control Capabilities: The ROV control system supports multiple automatic functions, including AutoPOS and AutoTRACK. Moreover, it can achieve over - the - horizon control from an onshore Remote Operation Center (ROC).
lTechnical Specifications
| Parameter | Details |
| Power | 160 kw / 220 hp |
| Depth Rating | 3000 msw |
| Dimensions (L/W/H) | 3.22 m/ 1.7m / 1.9m |
| Weight | Approximately 4600 kg |
| Payload | 450 kg |
| Through Frame Lift Capacity | 3000 kg |
