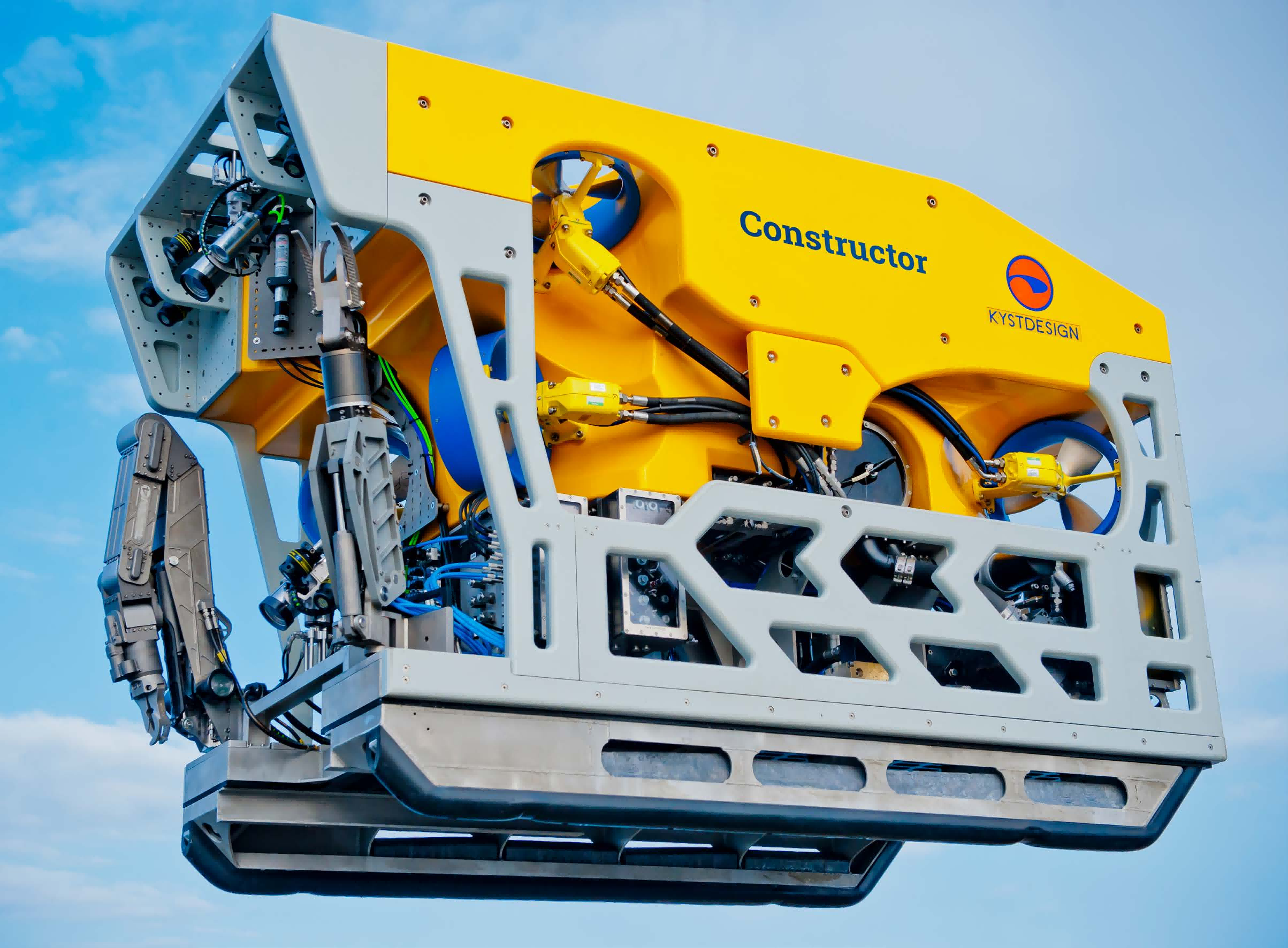

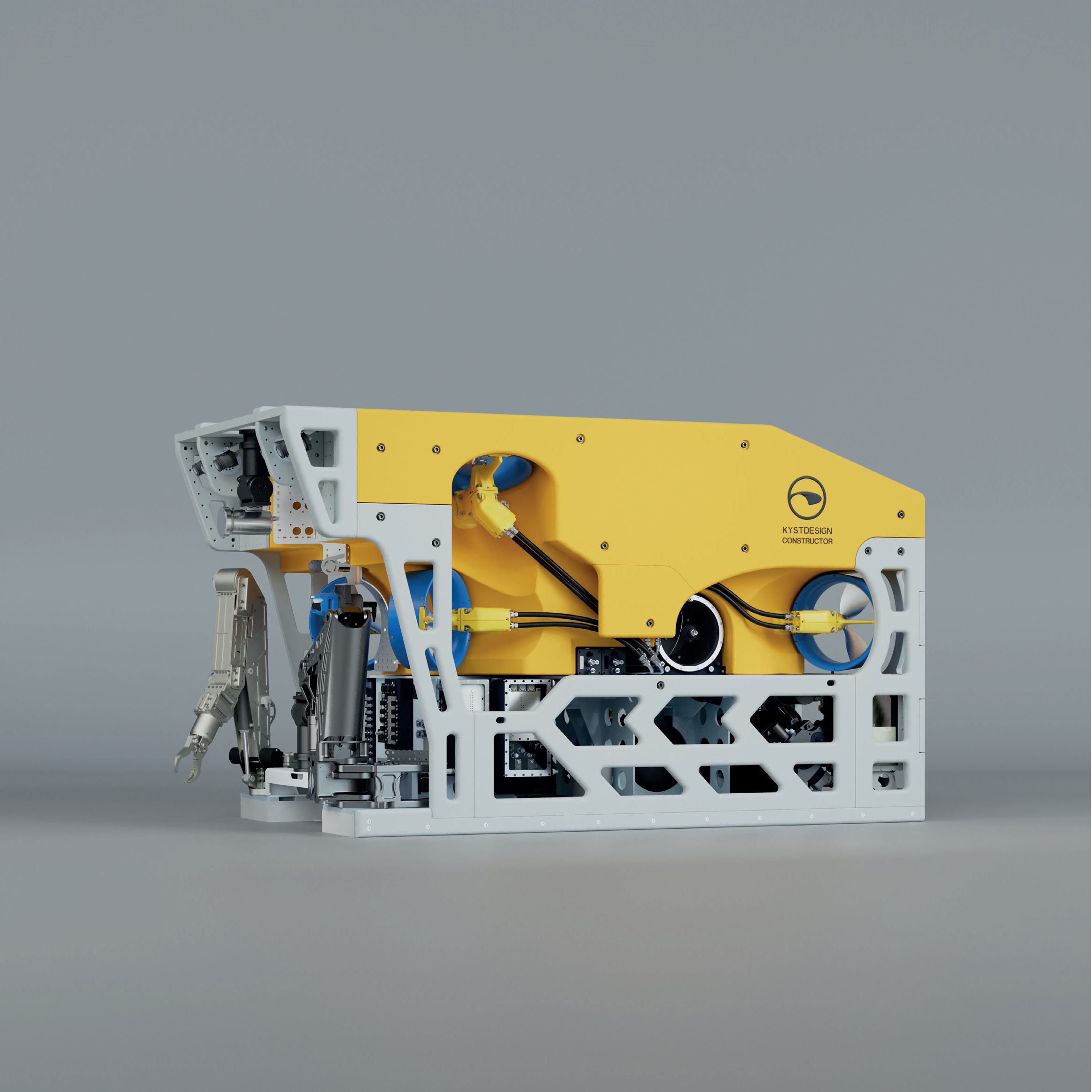

The Constructor 3000HF is a trusted high - flow work - class ROV, uniquely designed for carrying and operating large tools and modules. Its technology is refined from years of practical experience of engineers.
The topside control system can be configured into single or dual operation stations according to needs, and task priorities can be switched and shared between stations during operation.
lFeatures
1. Abundant Interfaces with Comprehensive Safety Monitoring: The ROV accommodates up to 35 electrical connectors for interface of external equipment, such as tooling, survey sensors and cameras, and all electrical power supplies are ground-fault monitored. The ROV also accommodates 24 hydraulic functions, all proportionally controlled.
2. Powerful Intelligent Control Capabilities: The ROV control system is prepared for a variety of auto functions like AutoPOS and AutoTRACK capabilities, in addition to over-the-horizon control from a Remote Operation Center (ROC) onshore.
lTechnical Specifications
| Parameter | Parameter |
| Power | 160 kW/220 hp |
| Depth Rating | 3000 msw |
| Dimensions(L/W/H) | 3.22m/1.7m/1.9m |
| Weight | Approximately 4600 kg |
| Payload | Approximately 400 kg |
| Through Frame Lif Capacity | 3000 kg |
