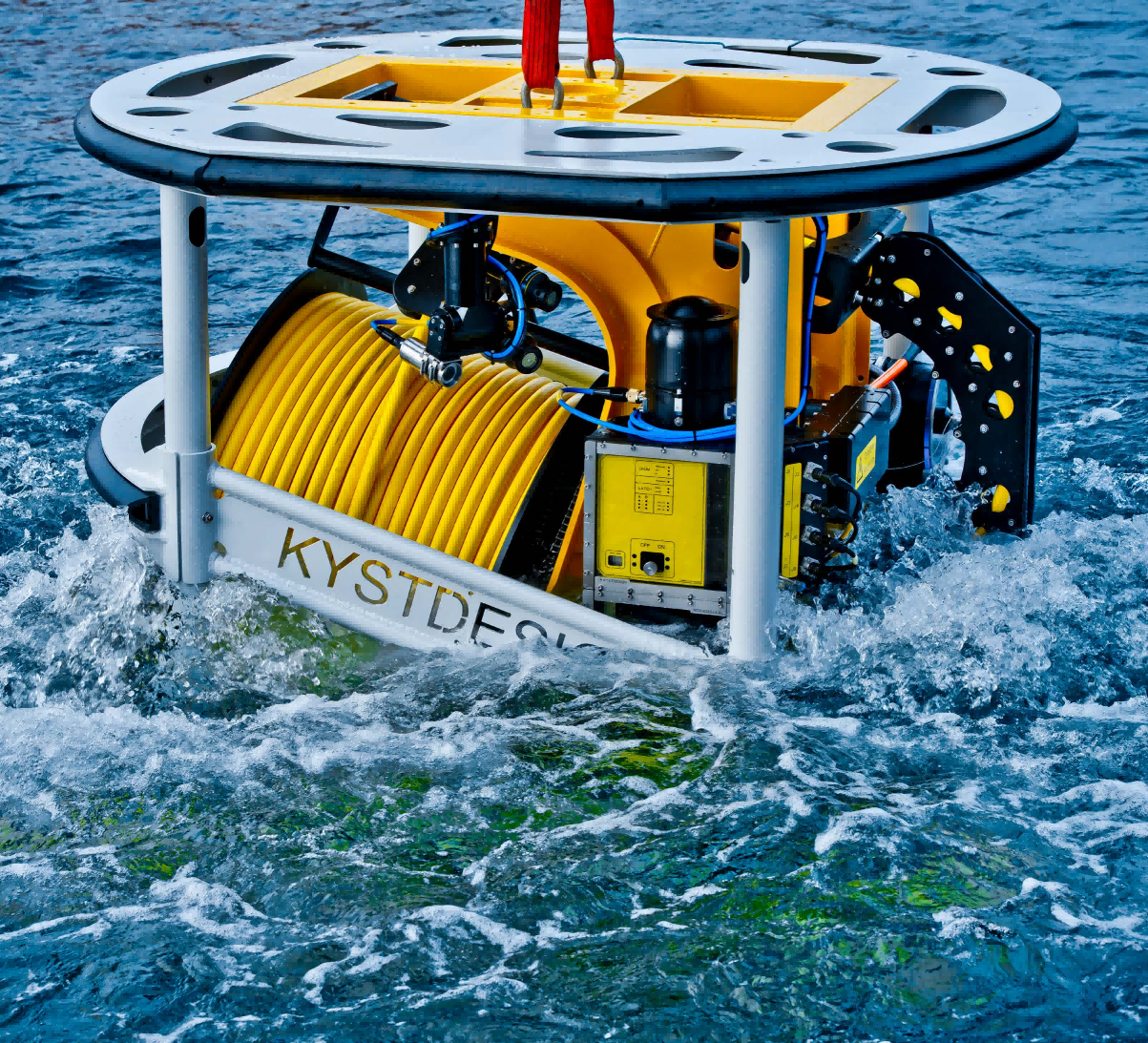

The KD10 TMS is an Electro Hydraulic Tether Managements System (TMS) with tether capacity of 1000 m
?35 mm tether.
The large diameter tension wheel together with tether force control and drum with lebus grooves ensures gentle and reliable handling of the tether.
lTechnical Specifications
üMax width 2590 mm
üMin width 2380 mm
üHeight 2438 mm
üDepth rating up to 6000 msw
üSWL liftpoint 12000 kg
üSWL latch 10000 kg
üTether capacity 1000 m ?35 mm tether
üMin. Tether Bending Diameter 900 mm
üWeight in air excl. tether 2480 kg
üWeight submerged excl. tether 1650 kg
| Parameter | Details |
| Max Width | 2590 mm |
| Min Width2380 mm | 2380 mm |
| Height | 2438 mm |
| Depth Rating | Up to 6000 msw |
| SWL Liftpoint (LARS Interface) | 12000 kg |
| SWL Latch (ROV Interface) | 10000 kg |
| Tether Capacity | 1000 m with ?35mm tether |
| Min.Tether Bending Diameter | 900 mm |
| Weight in Air excl.Tether | 2480 kg |
| Weight Submerged excl.Tether | 1650 kg |
