Introduction
IK Subsea are proud to present a state-of-the-art product that pushes the limits of engineering, yet meets the requirements set by governing standards and regulations.

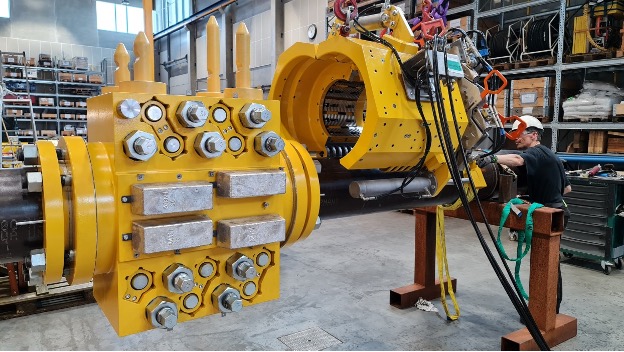

This EPRS covers 16″, 18″ and 24″ pipeline sizes and secures sealing and structural integrity in case of emergency. The EPRS is modular in design, where the sealing clamp and structural clamp are separate in case the damaged pipeline does not require structural repair. It comes with a dedicated installation/deployment tool which can handle all sizes in both horizontal and vertical orientations. It has been designed to withstand the wave loads in the splash zone, and comes with a 20 year lifetime expectancy for both fatigue and corrosion.
Features
lModular design with separate sealing and structural elements
lDedicated deployment tools for easy, rapid installation
lWide range od pressure & Temperature ratings available
lUnique designs to cover sour service where required
Governing Standards & Rules:
lDNVGL-RP-F113
lDNVGL-ST-F101
lDNVGL-RP-0034 (Forgings)
Specifications:
lCompatible with 16", 18" and 24" pipelines
lMaximum operating pressure 431bar
lApplicable for both gas and liquid pipelines
lDouble barrier with test port
lDesign Water Depth - 3,000m
lLifetime - 20 yrs
lDedicated All-Remote Installation and Deployment Tool
lROV and Diver compatible
